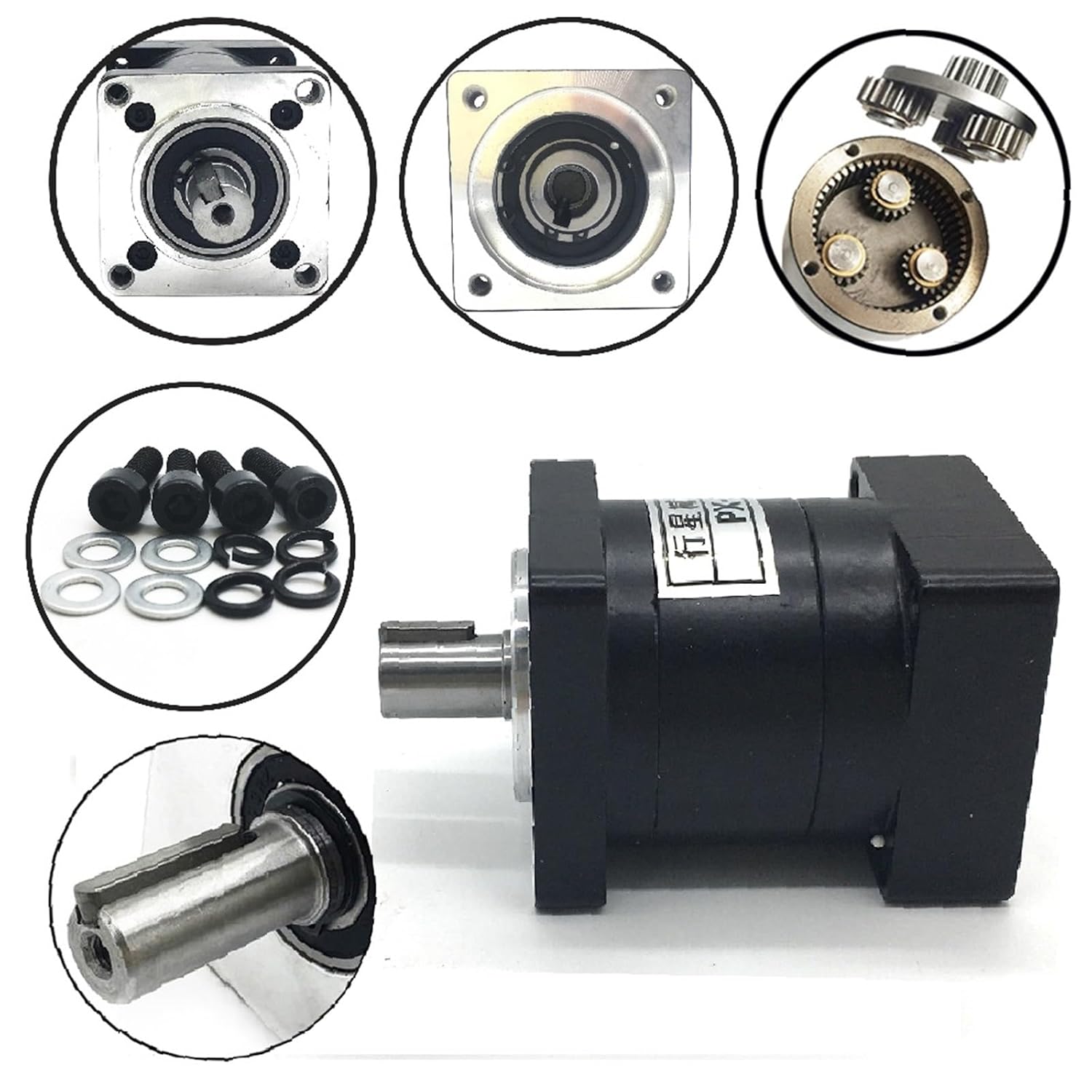

Servo Motor Planetary Gearbox Gear 80mm Flange Input & Output 19mm Ratio 3:1,5:1,10.56:1~216 Speed Reducer for Servo Motor CNC(Ratio 10,19 Input 19 Output)

Servo Motor Planetary Gearbox Gear 80mm Flange Input & Output 19mm Ratio 31,5:1,10.56:1~216 Speed Reducer for Brushless Motor Servo Motor CNC Package Listing: 1x Planetary Gearbox1x Key4x Install screws PS: For Servo Motor :Input Shaft: 19mm , Output Shaft: 19mm (Keyway=5mm)For Brushless Motor :Input Shaft: 14mm Output Shaft: 16mm (Keyway=5mm) 80PX Reducer Technical Parameters Stage Stage 1(L1) Stage 2(L2) Stage 3(L3) Speed Ratio 3/4/5/6/8/10 15/20/24/30/36/40/50/60 100/120/150/200 Input (MM) 19(For Servo Motor) 19(For Servo Motor) 19(For Servo Motor) Output shaft (MM) 19(For Servo Motor) 19(For Servo Motor) 19(For Servo Motor) Keyway (MM) 5 5 5 Body length (MM) 83 98 113 Rated load (N.M) 30 50 60 Maximum load (N.M) 50 80 100 Full load efficiency (%) 95 90 85 Backlash Precision (arcmin) 18 25 35 Rated input speed (RPM) 3000 3000 3000 Protection level (IP) 65 65 65 Noise (dB) 60 60 60 Average service life (H) 20000 20000 20000 Gear material 20Cr Carbon steel 20Cr Carbon steel 20Cr Carbon steel Drawing For Servo Motor: Drawing For Brushless Motor:==========Torque : 60NmModel Number : 80PX-3-19/19-70-63.6Construction : GearboxType : Gear MotorProtect Feature : Drip-proofCommutation : BrushlessEfficiency : IE 1Input : 19mmOutput Shaft : 19mmRated Input speed : less than 3000prmNoise : 60dBPrecision : less than 18 ArcminProtection level : IP65Flange : 80mmRated Load : L1= 30Nm , L2=50NM, L3=60NmGear material : 20Cr Carbon steelServo Motor reducer : Step-down gearboxplanetary reducer : planetary gearboxGearbox gear : plan
