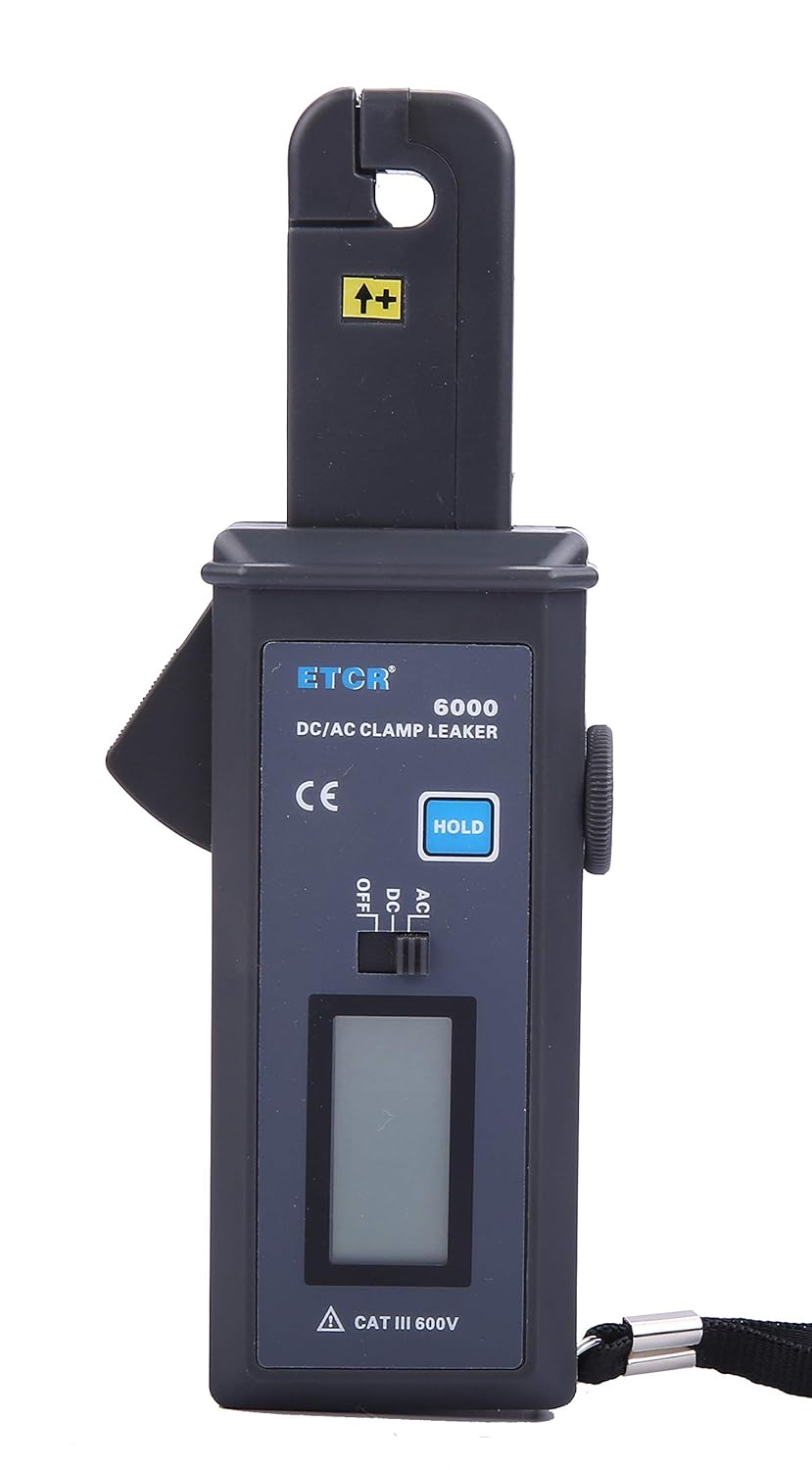

SSEYL ETCR6000 Digital AC/DC Clamp Current Leaker Meter

*Function Measurement of AC/DC current, leakage current *Power Supply 6F22,9V *Test Mode Clip-on CT, integral mode *Clamp Size Φ7mm *Measurement Range 0mA-60.0A AC/DC *Resolution 1mA AC/DC *Accuracy ±2%rdg±5dgt (23℃±5℃, below 75%rh) *Display Mode Four digits LCD display *Dimension LWH: 168mm×65mm×34mm *LCD Dimension 35mm×21.5mm; display domain: 32mm×15mm *Sampling Rate 2 times/s *Frequency AC: 45Hz-400Hz *Polarity Indication DC current auto identified and display“—” *Test Position Tested wire in the jaw center *Range Shift Automatically *Line Voltage AC600V *RS232 Interface Data stored in the memory of the meter via RS232 upload to PC *Com-Configure Baud rate:9600, data bit:8, stop bit:1 *Data Memory 99units, FULL blinks when the memory is full *Reading Hold DH indicating the reading is hold *Out of Range OL indicating the current is out of range *Auto Power-off 5 Minutes after power on, it will power off automatically to lower the power consumption *Battery Voltage Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed *Weight 180g (including the battery) *Working Current 10mA *Consumption 10mW *Working Temperature and Humidity -10℃-50℃,below 80%rh *Limit Temperature Error -10℃-0℃ and 40℃-50℃, within 2%rdg *Storage Temperature and Humidity -10℃-60℃,below 70%rh *Insulating Strength AC2kV/rms (between the alloy of the clamp and the housing) *Applicable safety rules IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
